THIS AIR SYSTEM BLOWS. HARD.

Elevate your vehicle's honking prowess with the HornAir 2HB Onboard Air System! Tailored specifically for those looking for a potent onboard air system without the space-consuming bulk, this powerhouse offers an ideal fusion of performance and compact design.

Turnkey Air Solution: Why scout for parts separately when the HornAir 2HB offers an all-in-one package? From the heavy-duty air compressor for swift refills to the essential mounting hardware, every component is curated for optimal performance.
Generous Honk Time: The 2-gallon, 6-port air tank ensures that your honk doesn’t run out prematurely, offering a solid 4-5 seconds to make your grand auditory entrance.
Versatile Utility: Beyond honking, the system is adept at handling other onboard air tasks, including tire inflation and powering small air tools, making it a multifaceted asset for every vehicle owner.
Quality Components: Comes with a standard 1/2" push-to-pull fitting and a complete brass NPT fitting kit, ensuring durability and seamless installation.

With the HornAir 2HB Onboard Air System, your vehicle won't just honk—it'll proclaim its presence with a vigor that's impossible to ignore. Embark on a journey where every honk echoes with power and clarity.

Please Note: This HornAir system is not recommended for AirChime horns. We recommend using at least a 4-gallon tank with larger-scale train horns like the P3, P5, K3, and K5; however, this kit is perfect for HornBlasters Shocker horns and Outlaw and Bandit series horns.

HornAir 2-gallon 6 port air tank
AC-2 air compressor
110/150 PSI pressure switch w/ 40 amp relay
HORNBLASTERS TIRE INFLATION KIT
Remote mountable intake air filter assembly
Spare air filter elements
6ft ⅜in air line (for air compressors air intake)
22ft of 10-gauge red wire
22ft of 18-gauge blue wire
22ft of 18-gauge grey wire
HornBlasters 200 PSI stainless steel liquid-filled air gauge
Brass NPT fittings kit including a safety blow-off & drain cock

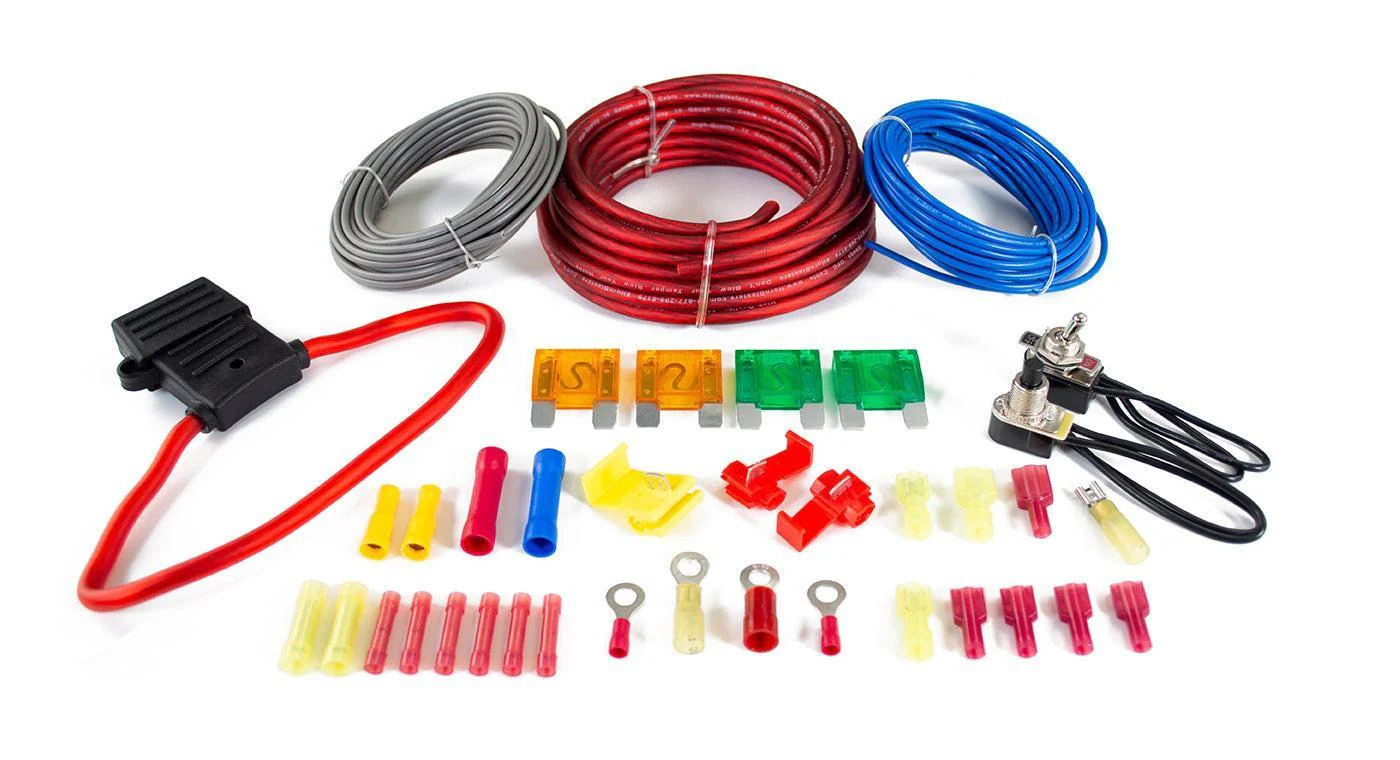

Complete wiring kit with fuse holder & fuses
Mounting hardware
Air line cutter
Detailed instructions
Earplugs

Air Tank	2-gallon 6 port air tank
Tank Length	17" (431.8 mm)
Tank Diameter	6" (152.4 mm)
Tank Height	8″ (203.2 mm)(With Legs)
Tank Weight	10 lb (4.54 Kg)
Operating Pressure	150 PSI
Restart Pressure	110 PSI
Duty Cycle	100% @ 100 PSI
Tank Ports	x2 1/2" NPT, x4 1/4" NPT
Voltage	12 volts DC
Air Compressor Length	8.75" (222.25 mm)
Air Compressor Width	4" (101.6 mm)
Air Compressor Height	6.6" (167.64 mm)
Max Amp Draw	25 Amps

2-Gallon Air Tank Dimensional Drawing

HornAir 2HB Onboard Air System

Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly.
Warranty
This product is backed by our 2-year manufacturer's defect warranty!
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing.
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise.
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.

YOUR AIR POWERPLANT.

Enter a new dimension of pneumatic prowess with the HornAir 232 system. Expertly crafted to be a one-stop air solution, this 150 PSI powerhouse ensures your vehicle is always equipped with the blast and support it deserves.

Precision-Engineered: Specifically designed for the iconic HornBlasters Shocker horns, experience sound like never before.
All-In-One System: No more piecemeal solutions. With our onboard system, you receive a 2-gallon 6-port air tank, the formidable 3Q air compressor, and all essential fittings.
Multipurpose Magic: Beyond just horns, it's apt for light pneumatic applications, tire inflations, small air tool operations, and supporting air suspensions.
Quick & Effortless Installation: Everything you need is in the box. Benefit from a standard 1/2" push-to-pull fitting, a comprehensive brass NPT fitting kit, and all required mounting hardware.
Unyielding Durability: Fully sealed and resistant to the elements, it's mountable indoors or out, assuring longevity and peak performance.

When performance, longevity, and efficiency matter, the HornAir 232 stands unparalleled. Let every journey resonate with unmatched power and precision!

RECOMMENDED FOR USE WITH THE FOLLOWING:

- Shocker S4 Train Horns (Part number: AH-S4)

- Outlaw Series Train Horns (Part numbers: AH-C3, AH-C3B)

- Katrina/Admiral Series Train Horns (Part numbers: AH-C5, AH-C5B)

Please Note: This HornAir system is not recommended for AirChime horns. We recommend using at least a 4-gallon tank with larger-scale train horns like the P3, P5, K3, and K5; however, this kit is perfect for HornBlasters Shocker horns and Outlaw and Bandit series horns.

HornAir 2-gallon 6 port air tank
HORNBLASTERS 3Q AIR COMPRESSOR
HORNBLASTERS TIRE INFLATION KIT
110/150 PSI pressure switch w/ 40 amp relay
Remote mountable intake filter assembly
Spare air filter elements
6ft ⅜" air line (for air compressors air intake)
22ft of 10-gauge red wire
22ft of 18-gauge blue wire
22ft of 18-gauge grey wire
HornBlasters 200 PSI stainless steel liquid-filled air gauge
Brass NPT fittings kit including a safety blow-off & drain cock
Complete wiring kit with fuse holder & fuses
Mounting hardware
Air line cutter
Detailed instructions
Earplugs

Air Tank	2-gallon 6 port air tank
Tank Length	17" (431.8 mm)
Tank Diameter	6" (152.4 mm)
Tank Height	8" (203.2 mm)
Tank Weight	10 lb (4.54 Kg)
Operating Pressure	150 PSI
Restart Pressure	110 PSI
Tank Ports	x2 1/2" NPT, x4 1/4" NPT
Air Compressor	HornBlasters 3Q Air Compressor
Voltage	12 volts DC
Max amperage	20 Amps
Maximum duty cycle	100% @ 100 PSI / 50% @ 200 PSI
Flow Rate @ 0 PSI	1.41 CFM
Compressor length	10.1″ (256.54 mm)
Compressor width	4.5″ (114.3 mm)
Compressor height	7″ (177.8 mm)
Weight	12.1 lb (5.48 Kg)

12-VOLT COMPRESSOR
2.0 GALLON TANK	FILL RATE
0 to 150 PSI	3 min. 59 sec. (± 10 sec.)
110 to 150 PSI	1 min. 33 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

2-Gallon Air Tank Dimensional Drawing

HornAir 232 Onboard Air System

Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly.
Warranty
This product is backed by our One-Year Manufacturer's Defect Warranty!
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing.
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise.
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.

BLOWING THINGS UP IN THE BEST POSSIBLE WAY.

Step into a world where strength meets versatility with the HornAir 244K Nightmare Edition Onboard Air System. Meticulously crafted for those who crave power, this onboard air system is the epitome of superior performance and broad functionality.

Nightmare Power: The 1NM stealth black air compressor, boasting a 100% duty cycle at 100 PSI, ensures you're never left gasping for air.
Versatile Tank Design: Equipped with a 2-gallon 6-port air tank, it comes with four 1⁄4 inch ports and two 1⁄2 inch ports. These strategic placements promise optimal draining and seamless airflow.
Beyond Just Horns: From adjusting tire pressure, inflating water toys, supplying air to load leveling bags, and differential lockers, to even pumping up kids' toys—this system has you covered.
Complete Package: This kit includes a top-notch 150 PSI compressor, a standard 1/2" push-to-pull fitting, a comprehensive fitting kit with a safety valve & drain cock, and all essential mounting hardware.

With the HornAir 244K, you don't just get an air system—you get a promise of unmatched performance and reliability. Let every journey be backed by a blast of power and convenience!

Please Note: This HornAir system is not recommended for AirChime horns. We recommend using at least a 4-gallon tank with larger-scale train horns like the P3, P5, K3, and K5; however, this kit is perfect for HornBlasters Shocker horns, Outlaw, and Bandit series horns.

2-gallon 6 port air tank
1NM stealth black air compressor
HORNBLASTERS TIRE INFLATION KIT
110/150 PSI pressure switcH WITH 40 AMP RELAY
Remote mountable intake filter assembly
Spare air filter elements
6ft 3/8" air line (for air compressors air intake)
22ft of 8-gauge red wire
22ft of 18-gauge blue wire
22ft of 18-gauge grey wire
HornBlasters 200 PSI stainless steel liquid-filled air gauge
Brass NPT fitting kit with safety blow-off & drain cock
Complete wiring kit with fuse holder & fuses
Mounting hardware
Air line cutter
Detailed instructions
Earplugs

Part Number	HA-244K
Operating Pressure	150 PSI
Restart Pressure	110 PSI
Voltage	12-Volt DC
Air Tank	HornAir 2-gallon 6 port air tank
Tank Length	17" (431.8 mm)
Tank Diameter	6" (152.4 mm)
Tank Height	8″ (203.2 mm)(With Legs)
Tank Weight	10 lb (4.54 Kg)
Tank Ports	x2 1/2" NPT, x4 1/4" NPT
Max amperage	25 Amps
Maximum duty cycle	100% @ 100 PSI / 50% @ 200 PSI
Flow Rate @ 0 PSI	1.75 CFM
Compressor length	10.75″ (273.05 mm)
Compressor width	4″ (101.6 mm)
Compressor height	6.75″ (171.45 mm)

2.0 GALLON TANK	FILL RATE
0 to 150 PSI	2 min. 06 sec. (± 10 sec.)
110 to 150 PSI	49 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

2-Gallon Air Tank Dimensional Drawing

HornAir 244K Nightmare Edition Onboard Air System

Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly.
Warranty
This product is backed by our One-Year Manufacturer's Defect Warranty!
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing.
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise.
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
