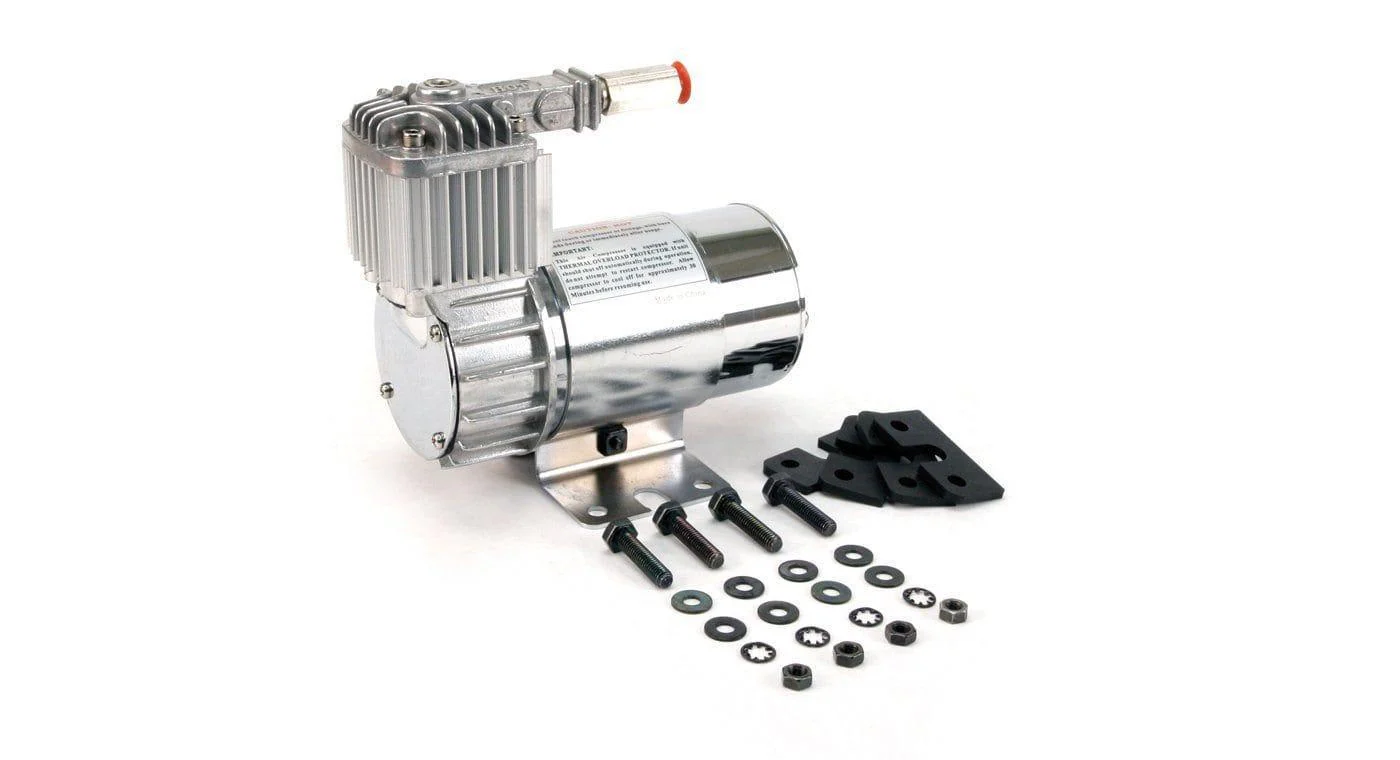

Viair 100C Chrome Air Compressor with Omega Bracket
THIS COMPRESSOR IS STRAPPED.
Looking for an air compressor that won't cost you a ton? Meet the Viair 100C Silver Compressor with Omega-Style Bracket! Perfect for light pneumatic applications, this compressor is no-frills but all thrills. With the included Omega mount, you can install it in a jiffy and show off its chromed-out hosing and endplates that give it a polished professional look. And the best part? The insulated wiring is already pre-installed, so you can start using it right away.
**To ensure the longevity and proper function of the air compressor, it is recommended to install it in a sheltered area, away from exposure to weather conditions and the elements.**
- Permanent Magnetic Motor
- Oil-Less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Omega Style Mounting Bracket
- Insulated Wiring with Connectors
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.27 | 9 | 0 | 36.0 | 9 |
| 10 | 0.90 | 10 | 1.0 | 25.0 | 10 |
| 20 | 0.85 | 11 | 2.0 | 22.5 | 11 |
| 30 | 0.79 | 11 | 3.0 | 21.0 | 12 |
| 40 | 0.76 | 12 | 4.0 | 20.0 | 13 |
| 50 | 0.72 | 12 | 5.0 | 18.3 | 12 |
| 60 | 0.71 | 13 | 6.0 | 17.0 | 12 |
| 70 | 0.67 | 13 | 7.0 | 15.0 | 12 |
| 80 | 0.64 | 12 | 8.0 | 13.7 | 12 |
| 90 | 0.59 | 12 | 9.0 | 12.3 | 12 |
| 100 | 0.55 | 12 | |||
| 110 | 0.52 | 12 | |||
| 120 | 0.48 | 12 | |||
| 130 | 0.45 | 12 |
* Supply Voltage: 13.8 Volts
| 0.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 50 sec. (± 05 sec.) |
| 85 to 105 PSI | 10 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 00 sec. (± 05 sec.) |
| 90 to 120 PSI | 17 sec. (± 03 sec.) |
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 40 sec. (± 10 sec.) |
| 85 to 105 PSI | 25 sec. (± 05 sec.) |
| 0 to 120 PSI | 2 min. 00 sec. (± 10 sec.) |
| 90 to 120 PSI | 35 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
- Viair 100c 12 Volt Air Compressor
- Omega Style Bracket
- Mounting Hardware
| SPECIFICATIONS | |
|---|---|
| Part Number | AC-100 |
| Manufacturers Part Number | 10016 |
| Voltage | 12 Volts DC |
| Max Amperage | 14 Amps |
| Maximum Duty Cycle | 15% @ 100 PSI |
| Maximum Pressure | 130 PSI |
| Max Tank Size | 1 Gallon |
| CFM | 1.27 CFM |
| Length | 6.0″ (161.3 mm) |
| Width | 3.5″ (83.82 mm) |
| Height | 5.3″ (124.46 mm) |
| Weight | 3.50 lb (1.59 Kg) |
-
Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly. -
Warranty
This product is backed by Viair's 1-year manufacturer's warranty! All Warranty claims for Viair products must be handled directly through Viair after 30 days. They can be reached at 1-949-585-0011.
-
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing. -
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise. -
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
